Product Application Guide
Application Keyword Quicksearch
Harden X™ Product Application back to top
Always test the surface to be treated for suitability and desired results. Let surface dry before assessing results of test application. SealSource Equipment Needed for Harden X Application back to top
Harden X New Concrete back to top Harden X™ may be applied to new concrete immediately after final trowel or at any point thereafter. If applying to acid-stained or integrally-pigmented concrete floors, please take note of the modifications below. 1. Thoroughly clean and scrub the surface to be treated, removing any substance that may interfere with penetration—including any bond breakers, form release oils, wax, surface laitance, curing compounds, drywall residue, dust, or other contaminant. Acid-stained surfaces must be neutralized prior to application by washing and scrubbing with a neutralizing agent followed by a water rinse. Allow surface to dry completely before application. (If applying to new concrete floors after joints have been cut, carefully clean saw-cut residue from the surface with vacuums, sweepers, blowers, or brooms. A scrubbing machine with a red pad may be used to remove any remaining residue from the joints. If necessary, damp mop the joints and around columns to ensure surface is thoroughly clean. Allow surface to dry completely before application.) 2. Using a high-volume/low-pressure, pump-up, airless, backpack, or mechanical sprayer, apply Harden X™ at 400-500 sq/ft per gallon (10-12 m2 per liter), maintaining a consistent, even spray. Do not allow the material to puddle (lightly broom out any pooling material immediately after spraying). 3. The entire surface MUST remain wet with Harden X™ for 30 minutes to allow the material to react properly with the surface. DO NOT LET ANY AREA DRY OUT – apply more Harden X™ if necessary to keep the surface wet - DO NOT USE WATER. After the wet material has reacted with the surface for 30 minutes, allow material to dry unless applying to acid-stained or integrally-colored concrete (see modification below). Material should dry in 1-2 hours and will be ready for traffic as soon as it dries. Modification for Acid-Stained or Integrally-Colored Concrete: After keeping surface wet for 30 minutes, spray water on the surface to saturate it completely. To ensure a uniform finish, do not let any area of the surface dry prior to cleaning. Remove excess residue using a scrubber equipped with a red pad. With the squeegee down, vacuum on, and light head pressure, add water, scrub, and clean the surface to remove all excess residue. Dispose of excess material according to local regulations. Tilt-Up Construction Applications Please contact SealSource® technical support services for specific instructions. Harden X Existing (Cured) Concrete Application back to top
Harden X™ may be applied to existing, cured concrete of any age that is structurally sound.
1. Mechanically remove any surface laitance and patch or fill any cracks or other surface damage. 2. Remove dirt, dust, oil, grease, membrane-forming curing compounds, coatings, sealers, or other contaminants or substances that may interfere with penetration. 3. For maximum penetration, sand blast or shot blast concrete with a 60-100 grit sanding screen or diamond abrasive pad. SealSource® recommends mechanical surface preparation when possible, however older concrete may require more aggressive preparation. If using acid etch or other chemical preparation, the surface MUST be neutralized with a pH neutral cleanser to prevent whiting. (Please call SealSource® technical support services for specific instructions.) 4. Remove any remaining dirt, contaminants, and dust caused by grinding with a riding or walk-behind scrubbing machine with water or broom following by a water rinse. Squeegee dry or allow to dry completely prior to application. 5. Using a low-pressure, pump-up, airless backpack, or mechanical sprayer apply Harden X™ at 400-500 sq/ft per gallon (10-12 m2 per liter), maintaining a consistent, even spray. Do not allow the material to puddle (lightly broom out any excess material immediately after spraying). 6. The entire surface MUST remain wet with Harden X™ for 30 minutes to allow the material to react properly with the surface. DO NOT LET ANY AREA DRY OUT – apply more Harden X™ if necessary to keep the surface wet - DO NOT USE WATER. After the wet material has reacted with the surface for 30 minutes, allow material to dry. Material should dry in 1-2 hours and will be ready for traffic as soon as it dries. Harden X Vertical Application back to top
Prepare surface as directed above for either new or existing concrete and apply using one of the following methods:

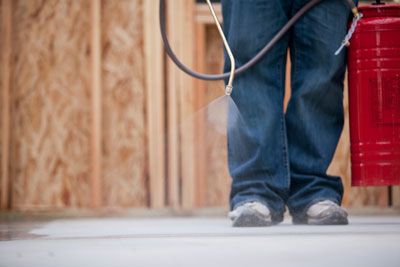

Spray Method: Apply Harden X™ from the bottom up using a low pressure, 10-24 psi sprayer (68.9 – 172 kPa). Flood surface until excess runs down 6-8 inches (15-20 cm) below spray pattern, or sponge to create a uniform wet appearance. On horizontal surfaces, proper quantity is indicated when the material stands on the surface for a few seconds before completely penetrating. For maximum vertical penetration and desired coverage rates, “wet-on-wet” application is recommended. Re-apply Harden X™ as above within 3-5 minutes after initial application. Use a broom to distribute any accumulated material. Roller Method: If applying with a brush or roller, apply in multiple coats until the surface remains moist for approximately one minute before the material disappears. Use a broom to distribute any accumulated material.
High Humidity– Apply Harden X™ as above. After the material has reacted for 30 minutes, remove any excess material that has not penetrated the surface. Do not allow excess material to air-dry.
High Temperatures- (Above 90 F or 32 C) – To prevent Harden X™ from flashing/drying too quickly, the area to be treated may be sprayed with water to cool the surface prior to application. Allow the surface to dry completely before applying the material. SS Harden X™ may also be applied by spraying out at 800-1000 sq/ft per gallon (30-40 m2 per liter) in three thin coats, using 100% polyester microfiber pads to spread the material.
Low Temperatures- (Below 40 F or 4 C) – Apply Harden X™ as above. While keeping the surface wet for 30 minutes, agitate the material using red pads on a scrubbing machine, floor machine or swing buffer. Because of the need to agitate the material once it has been applied, apply to a smaller square footage which can be successfully managed.
DO NOT ALLOW MATERIAL TO FREEZE
Product Disclaimers
Harden X™ is not suitable for asphalt or other non-concrete surfaces.
Harden X™ will not bridge or fill cracks and will not salvage structurally unsound surfaces.
Harden X™ is not recommended for plastic concrete or mortar- or resin-based terrazzo mixes.
Do not allow Harden X™ to come in contact with any glass, fabric, metal, or painted surfaces. Immediately wipe contaminated surfaces with a clean, water-saturated cloth, then wipe dry with a second clean cloth.
Application and coverage rates are estimated and may vary depending on the porosity of substrate and environmental conditions present during application. For precise rates of consumption, a pre-application field test should be performed. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user. DO NOT ALLOW SEALSOURCE® PRODUCTS TO FREEZE
Harden X SI™ may be applied to new concrete immediately after final trowel or to existing concrete of any age. Proper surface preparation and product application is essential to performance. For optimum results, please read instructions in full and contact our Technical Support department at (800) 305-9144 for additional customized instructions prior to application.
Always test the surface to be treated for suitability and desired results. Let surface dry before assessing results of test application. Vertical application: Sprayer or roller with 3/4" nap Soft broom or 100% polyester microfiber pads (to spread out any excess material) Harden X SI Surface Preparation & Product Application back to top Harden X SI New Concrete back to top Harden X SI™ may be applied to new concrete immediately after final trowel or at any point thereafter. If applying to acid-stained or integrally-pigmented concrete floors, please take note the modifications below. 1. Thoroughly clean and scrub the surface to be treated, removing any substance that may interfere with penetration—including any bond breakers, form release oils, wax, surface laitance, curing compounds, drywall residue, dust, or other contaminants. Acid-stained surfaces must be neutralized prior to application by washing and scrubbing. Allow surface to dry completely before application. (If applying to new concrete floors after joints have been cut, carefully clean saw-cut residue from the surface with vacuums, sweepers, blowers, or brooms. Appropriate scrubber equipment with a red pad may be used to remove any remaining residue from the joints. If necessary, damp mop the joints and around columns to ensure surface is thoroughly clean. Allow surface to dry completely before application.) 2. Using a HVLP, pump-up, airless, backpack, or mechanical sprayer, apply Harden X SI™ at 400-500 sq/ft per gallon (10-12 m2 per liter), maintaining a consistent, even spray. Do not allow the material to puddle (lightly broom out any excess material immediately after spraying). 3. The entire surface MUST remain wet with Harden X SI™ for 30 minutes to allow the material to react properly with the surface. DO NOT LET ANY AREA DRY OUT – apply more Harden X SI™ if necessary to keep the surface wet - DO NOT USE WATER. After the wet material has reacted with the surface for 30 minutes, allow material to dry (if applying to acid-stained or integrally-colored concrete, see modification below.) Material should dry in 1-2 hours and will be ready for traffic as soon as it dries. Modification for Acid-Stained or Integrally-Colored Concrete: After keeping surface wet for 30 minutes, spray water on the surface to saturate it completely. To ensure a uniform finish, do not let any area of the surface dry prior to cleaning. Remove excess residue with a scrubber equipped with a red pad. With the squeegee down, vacuum on, and light head pressure, add water, scrub, and clean the surface to remove all excess residue. Dispose of excess material according to local regulations. Tilt-Up Construction Applications Please contact SealSource® technical support services for specific instructions. Harden X SI Existing (Cured) Concrete Application back to top Harden X SI™ may be applied to existing, cured concrete of any age that is structurally sound. 1. Mechanically remove any surface laitance and patch or fill any cracks or other surface damage. 2. Remove dirt, dust, oil, grease, membrane-forming curing compounds, coatings, sealers, or other contaminants or substances that may interfere with penetration. 3. For maximum penetration, sand blast or shot blast concrete with a 60-100 grit sanding screen or diamond abrasive pad. SealSource® recommends mechanical surface preparation when possible, however older concrete may require more aggressive preparation. If using acid etch or other chemical preparation, the surface MUST be neutralized with a pH neutral cleanser to prevent whiting. (Please call SealSource® technical support for specific instructions.) 4. Remove any remaining dirt, contaminants, and dust caused by grinding with a riding or walk-behind scrubbing machine with water or broom following by a water rinse. Squeegee dry or allow to dry completely prior to application. 5. Using a HVLP, pump-up, airless, backpack, or mechanical sprayer apply Harden X SI™ at 400-500 sq/ft per gallon (10-12 m2 per liter), maintaining a consistent, even spray. Do not allow the material to puddle (lightly broom out any excess material immediately after spraying). 6. The entire surface MUST remain wet with Harden X SI™ for 30 minutes to allow the material to react properly with the surface. DO NOT LET ANY AREA DRY OUT – apply more Harden X SI™ if necessary to keep the surface wet - DO NOT USE WATER. After the wet material has reacted with the surface for 30 minutes, allow material to dry.) Material should dry in 1-2 hours and will be ready for traffic as soon as it dries. Harden X SI Vertical Application back to top Prepare surface as directed above for either new or existing concrete and apply using one of the following methods: Spray Method: Apply Harden X SI™ from the bottom up using a low pressure, 10-24 psi sprayer (68.9 – 172 kPa). Flood surface until excess runs down 6-8 inches (15-20 cm) below spray pattern, or sponge to create a uniform wet appearance. On horizontal surfaces, property quantity is indicated when the material stands on the surface for a few seconds before completely penetrating. For maximum vertical penetration and desired coverage rates, “wet-on-wet” application is recommended. Re-apply Harden X SI™ as above within 3-5 minutes after initial application. Use a broom to distribute any accumulated material. Roller Method: If applying with a brush or roller, apply in multiple coats until the surface remains moist for approximately one minute before the material disappears. Use a broom to distribute any accumulated material. Harden X SI Application in Extreme Weather Conditions back to top High Humidity – Apply Harden X SI™ as above. After the material has reacted for 30 minutes, remove any excess material that has not penetrated the surface. Do not allow excess material to air- dry. High Temperatures (Above 90o F or32o C) – To prevent Harden X SI™ from flashing/drying too quickly, the area to be treated may be sprayed with water to cool the surface prior to application. Allow the surface to dry completely before applying the material. Harden X SI™ may also be applied by spraying out at 800-1000 sq/ft per gallon (30-40 m2 per liter) in three thin coats, using 100% polyester microfiber pads to spread the material. Low Temperatures (Below 40o F or 4o C) – Apply Harden X SI™ as above. While keeping the surface wet for 30 minutes, agitate the material using red pads on a scrubbing machine, floor machine or swing buffer. Because of the need to agitate the material once it has been applied, apply to a smaller square footage which can be successfully managed. DO NOT ALLOW MATERIAL TO FREEZE Product Disclaimers Harden X SI™ is not suitable for asphalt surfaces and should not be applied to glazed brick or tiles. Harden X SI™ is not intended to be used as a waterproofing material. Harden X SI™ will not bridge water intrusion of visible cracks of 10 mils or larger and is not designed for use on surfaces experiencing hydrostatic pressure. Application and coverage rates are estimated and may vary depending on the porosity of substrate and environmental conditions present during application. For precise rates of consumption, a pre-application field test should be performed. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user. DO NOT ALLOW SEALSOURCE® PRODUCTS TO FREEZE DuraGloss 30+™ Product Application back to top
Penetrating Lithium Industrial Seal Coat
DuraGloss 30+™ may be applied to concrete that has cured at least 14 days. For best results, apply to surfaces that have been treated with Harden X™ or Harden X SI™. Proper surface preparation and product application is essential to performance. For optimum results, please read instructions in full and contact our Technical Support department at (800) 305-9144 for additional customized instructions prior to application. Equipment Needed for DuraGloss 30+ Application back to top
ALLOW NEW CONCRETE TO CURE FOR A MINIMUM OF 14 DAYS PRIOR TO APPLICATION. 1. Mechanically remove any surface laitance and patch or fill cracks and damaged areas. (Etching the surface with an acidic solution is not recommended. If chemical preparation is necessary, however, the surface must be neutralized with a pH-neutral cleanser prior to application to prevent surface whiting.) 2. Thoroughly clean the surface and remove any membrane-forming curing compounds, wax, sealers, oil, grease, dirt, drywall residue or other contaminants. 3. Thoroughly scrub surface to remove any remaining dirt or dust (avoid using cleaners with butoxyethanol.) Allow surface to dry completely prior to application. DuraGloss 30+ Product Application back to top 1. Shake the material in the container before application. 2. Apply a very thin coat of DuraGloss 30+™ with a 100% polyester microfiber pad at a rate of 1,500 sq/ft per gallon (35 m2 per liter) or more, depending on porosity of the surface. Spread material thinly and evenly to achieve a consistent, wet appearance. (A thin application may streak; a heavy coat will appear milky or cloudy.) 3. Allow surface to dry, then burnish with SealSource® diamond-impregnated pads using a floor burnisher with a minimum of 1,500 RPMs. 4. Apply a second coat. Allow to dry and burnish. Keep surface dry for 72 hours following treatment to allow it to cure properly. DuraGloss 30+ Application in High Humidity back to top Apply the material as above, increasing cure time as needed to allow surface to dry between applications. Surface must remain dry for up to 96 hours or more following treatment to allow material to cure properly. Product Disclaimers DuraGloss 30+™ will not bridge or fill cracks and will not salvage honeycombed or structurally unsound surfaces. The fast-drying and extremely durable bonding characteristics of DuraGloss 30+™ will permanently bond to a variety of surfaces and is extremely difficult to remove once it has cured. It is strongly recommended that areas which could be affected by splatters, splashes, or overspray be masked and protected prior to treatment. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user.
DuraGloss 50+™ may be applied concrete that has cured at least 14 days. Proper surface preparation and product application is essential to performance. For optimum results, please read instructions in full and contact our Technical Support department at (800) 305-9144 for additional customized instructions prior to application. SealSource Equipment Needed for DuraGloss 50+ Application back to top
ALLOW NEW CONCRETE TO CURE FOR A MINIMUM OF 14 DAYS PRIOR TO APPLICATION. 1. Mechanically remove any surface laitance and patch or fill cracks and damaged areas. (Etching the surface with an acidic solution is not recommended. If chemical preparation is necessary, however, the surface must be neutralized with a pH-neutral cleanser prior to application to prevent surface whiting.) 2. Thoroughly clean the surface and remove any membrane-forming curing compounds, wax, sealers, oil, grease, dirt, drywall residue or other contaminants. 3. Thoroughly scrub surface to remove any remaining dirt or dust (avoid using cleaners with butoxyethanol.) Allow surface to dry completely prior to application. DuraGloss 50+ Product Application back to top 1. Shake the material in the container before application. 2. Apply a very thin coat of DuraGloss 50+™ with a 100% polyester microfiber pad at a rate of 1,500 sq/ft per gallon (35 m2 per liter) or more, depending on porosity of the surface. Spread material thinly and evenly to achieve a consistent, wet appearance. (A thin application may streak; a heavy coat will appear milky or cloudy.) 3. Allow surface to dry, then burnish with SealSource® diamond-impregnated pads using a floor burnisher with a minimum of 1,500 RPMs. 4. Apply a second coat, allow to dry, burnish. 5. Keep surface dry for 24 hours following treatment to allow it to cure properly. DuraGloss 50+ Application in Extreme Weather Conditions back to top High Humidity – Apply the material as above, increasing cure time between applications to 1 hour. Surface must remain dry for up to 72 hours or more following treatment to allow material to cure properly. Product Disclaimers DuraGloss 50+™ will not bridge or fill cracks and will not salvage honeycombed or structurally unsound surfaces. The fast-drying and extremely durable bonding characteristics of DuraGloss 50+™ will permanently bond to a variety of surfaces and is extremely difficult to remove once it has cured. It is strongly recommended that areas which could be affected by splatters, splashes, or overspray be masked and protected prior to treatment. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user. DO NOT ALLOW DuraGloss 50+™ TO FREEZE OR TO BE STORED AT TEMPERATURES ABOVE 120 F (48 C) KromaPolish™ Product Application back to top Deep Penetrating Lithium Polishable Color System
DuraGloss 50+™ Interior Surfaces / 24-hour cure time / High Gloss DuraGloss 30+™ Interior Surfaces / 72-hour cure time / Satin Finish If salt protection is desired, Harden X SI™ may be used in place of Harden X™. Please note that the performance of KromaPolish™ does not require polishing. Proper surface preparation and product application is essential to performance. For optimum results, please read instructions in full and contact our Technical Support department at (800) 305-9144 for additional customized instructions prior to application. It is recommended to apply a physical sample prior to treatment. KromaPolish colors may be layered for a mottled, multi-colored appearance. Equipment Needed for KromaPolish Application back to top

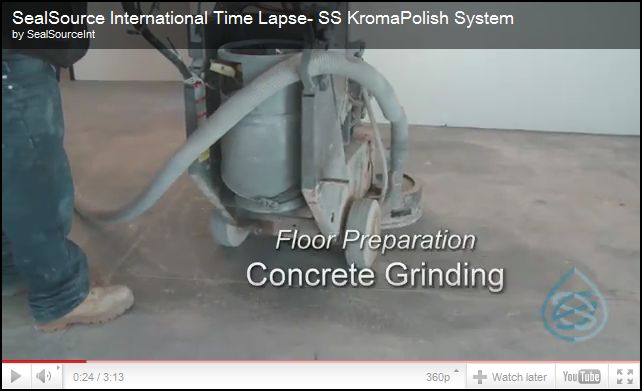

1. Thoroughly clean surface to be treated, removing any membrane-forming materials, dirt, debris, wax, paint, curing compounds, coatings, or other substance that may impede penetration. 2. Patch or fill any cracks or other surface damage. 3. Shot blast or mechanically prepare the surface at a 100 resin grit level to allow proper penetration of color. (Depending on the condition of the concrete, several steps of metal grinding may be necessary.) Mechanical surface preparation is preferred; however older concrete may require more aggressive preparation. If using acid etch or other chemical preparation, the surface MUST be neutralized with a pH neutral cleanser and rinsed with water to prevent whiting. 4. Sweep area to be treated and scrub clean with water to remove any remaining contaminants, dirt, and dust caused by grinding. 5. Allow surface to dry completely prior to application. KromaPolish Product Application back to top Please note that coverage rates may vary depending on surface porosity. Additional applications may be necessary to achieve desired results. KromaPolish™ colors may be layered for a mottled, multi-colored appearance. For artistic designs, apply KromaPolish™ with microfiber pads as described below. 1. Agitate material thoroughly with a mechanical mixer to ensure redistribution of pigment that may have settled, then apply to surface using one of the following methods: Spray Method: Using a HVLP, pump-up, airless, backpack, or mechanical sprayer, apply material evenly at 400-600 sq/ft per gallon (10-15 m2 per liter) maintaining a consistent, even spray. Do not allow material to puddle. Roller Method: Roll material evenly onto surface at 800-1000 sq/ft per gallon (20-25 m2 per liter) with a nap pad no larger than ¾ inch. Pad Method: Apply evenly onto surface at 800-1000 sq/ft per gallon (20-25 m2 per liter) with a 100% polyester microfiber pad. 2. Allow material to dry for a minimum of 2 hours, then spray surface with a thin, even coat of Harden X™ at 600 sq/ft per gallon (15 m2 per liter) or apply with a 100% polyester microfiber pad at approximately 700 sq/ft per gallon (17 m2 per liter). If spraying, use a microfiber pad to distribute any pooled material. If Harden X™ is pooling in any area, use a microfiber pad to distribute the material. 3. Allow Harden X™ to dry, then apply a second coat of KromaPolish™ as above. (For a mottled look, a second SS KromaPolish™ color may be used for this application.) 4. Allow second coat of KromaPolish™ to dry for 2 hours, then apply a second thin coat of Harden X™ as above. 5. Allow second coat of Harden X™ to cure for a minimum of 2 hours (longer cure time will increase surface hardness for greater shine). Surface must at least be dry to the touch before resuming the polishing process. When surface has cured for the desired length of time, polish surface to a 200 resin grit level (continue polishing for a deeper shine). 6. When polishing is complete, dust mop the surface thoroughly to remove any dust. 7. Allow surface to dry completely, then apply DuraGloss™ with sprayer at 1,500-2,000 sq/ft per gallon (40-50 m2 per liter). Spread material evenly over surface with a 100% polyester microfiber pad to achieve a consistent, wet appearance. (A thin application may streak; a heavy coat will appear milky or cloudy.) 8. Wet out a 100% polyester microfiber applicator pad with the material to avoid streaking, then spread material evenly over surface to achieve a consistent, wet appearance. (If the material appears to be streaking, spray on additional material. If the material has a blue, milky/cloudy appearance, continue to pull out material until it no longer appears blue.) 9. Allow surface to dry, then burnish with SealSource® diamond-impregnated pads at 1,500-3,000 grit level using a high-speed floor burnisher (minimum of 1,500 RPMs). 10. Apply a second coat of DuraGloss™ as above and burnish when surface is dry. If a higher gloss is desired, apply additional applications of DuraGloss™ until desired gloss is achieved, allowing each application to dry thoroughly before burnishing. 11. Keep surface dry following treatment for the cure time recommended by manufacturer to allow it to cure properly. KromaPolish Application in High Humidity back to top Apply as above, but increase cure time to three hours between coats of KromaPolish™ and Harden X™. Allow a minimum of four hours after final coat of Harden X™ prior to polishing. Product Disclaimers The fast-drying and durable bonding properties of DuraGloss™ cause it to permanently bond to a variety of surfaces. The material is extremely difficult to remove once it has cured, so it is strongly recommended that areas which could be affected by splatters, splashes, or overspray be masked and protected prior to treatment. Application and coverage rates are estimated and may vary depending on the porosity of substrate, the desired intensity of color and shine, and environmental conditions present during application. For precise coverage rates, a pre-application field test should be performed. Proper application is the responsibility of the user. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user. DO NOT ALLOW SEALSOURCE® PRODUCTS TO FREEZE KromaKrete™ Product Application back to top
UV Stable Lithium Colored Hardener
KromaKrete™ is designed to be applied with one of the following DuraGloss™ formulations according to the desired results: DuraGloss 50+™ Interior Surfaces/High Gloss/24-hour Cure Time DuraGloss 30+™ Interior Surfaces/Satin Finish/72-hour Cure Time DuraGloss EXT™ Exterior Surfaces/Matte-Satin Finish/2-hour Cure Time Proper surface preparation and product application is essential to performance. For optimum results, please read these instructions in full and contact our Technical Support department at (800) 305-9144 for additional customized instructions prior to application. NOTE: When applied to surface, color may vary from SealSource® brochures or website.It is recommended to apply a physical sample prior to treatment. Equipment Needed for KromaKrete Application back to top
ALLOW NEW CONCRETE TO CURE FOR A MINIMUM OF 14 DAYS PRIOR TO APPLICATION. 1. Patch or fill any cracks or surface damage. 2. Remove any membrane-forming materials, dirt, debris, wax, paint, curing compounds, coatings, or other substance that may impede penetration. 3. Shot blast or mechanically prepare interior surfaces to a 100 resin grit level. 4. Sweep area to be treated and scrub clean with water to remove any remaining contaminants, dirt, and dust caused by grinding. 5. Allow surface to dry completely prior to application. KromaKrete Product Application (Exterior Surfaces) back to top Please note that coverage rates may vary depending on surface porosity. 1. Agitate KromaKrete™ thoroughly with a mechanical mixer to ensure color uniformity. 2. Using a HVLP, pump-up, airless, backpack, or mechanical sprayer, apply material evenly at 300-500 sq/ft per gallon (8-12 m2 per liter). Use a circular motion and maintain a consistent, even spray. Do not allow the material to puddle. A medium-bristle broom may be used to work the material into the surface until it begins to dry. 3. Allow material to dry for 30 minutes minimum (or until completely dry to the touch), then apply a second application of KromaKrete™ as above. Additional applications may be added until desired depth of color has been achieved. Allow each application to dry completely before the next application. 4. When final application of KromaKrete™ has dried completely, spray on a consistent application of DuraGloss EXT™ at 400 sq/ft per gallon (10 m2 per liter). 5. Wet out a 100% polyester microfiber applicator pad with the material to avoid streaking, then spread material evenly over surface to achieve a consistent, wet appearance. (If the material appears to be streaking, spray on additional material. If the material has a blue, milky/cloudy appearance, continue to pull out material until it no longer appears blue.) It is recommended to test a small 2 ft x 2 ft area to assess the appropriate application rate for the surface to be treated. 6. Allow surface to dry, then apply a second coat of DuraGloss EXT™ as above. (Additional applications may be applied if desired.) 7. Keep surface dry for a minimum of 2 hours following treatment to allow it to cure properly. Exterior Application in High Humidity: Apply materials as above, increasing cure time as needed to allow surface to dry between multiple applications of KromaKrete™ and DuraGloss EXT™. Keep surface dry for up to 24 hours after application to allow material to cure properly. 1. Agitate KromaKrete™ thoroughly with a mechanical mixer to ensure color uniformity and apply using one of the following methods: Spray Method: Using a low-pressure, pump-up, airless, backpack, or mechanical sprayer with a fine tip, apply material evenly at 400-600 sq/ft per gallon (10-15 m2 per liter). Use a circular motion and maintain a consistent, even spray. Do not allow the material to puddle (lightly broom out any pooled material). Roller Method: Roll material evenly onto surface at 800-1000 sq/ft per gallon (20-25 m2 per liter) with a nap pad no larger than ¾ inch. Apply evenly and do not allow material to run. Pad Method: Apply evenly onto surface at 800-1000 sq/ft per gallon (20-25 m2 per liter) with 100% microfiber pad. 2. Allow material to dry for 30 minutes minimum (until completely dry to the touch), then apply a second application of KromaKrete™ as above. Additional applications may be added until desired depth of color has been achieved. Allow each application to dry completely before the next application. 3. When final application is dry to the touch, burnish with SealSource® diamond-impregnated pads (1,500-3,000 grit) with a high-speed burnisher (1,500 RPMs minimum). 4. Apply DuraGloss 50+™ or DuraGloss 30+™ with a low-pressure, pump-up, airless, backpack, or mechanical sprayer at 1,500-2,000 sq/ft per gallon (50-60 m2 per liter). 5. Wet out a 100% polyester microfiber applicator pad with the material to avoid streaking, then spread material evenly over surface to achieve a consistent, wet appearance. (If the material appears to be streaking, spray on additional material. If the material has a blue, milky/cloudy appearance, continue to pull out material until it no longer appears blue.) It is recommended to test a small 2 ft x 2 ft area to assess the appropriate application rate for the surface to be treated. 6. Allow surface to dry, then burnish with SealSource® diamond-impregnated pads using a floor burnisher with a minimum of 1,500 RPMs. 7. Apply a second coat of DuraGloss 50+™ as above and burnish when surface is dry. 8. Keep surface dry following treatment for the cure time recommended by the manufacturer to allow it to cure properly. Interior Application in High Humidity: Apply materials as above, increasing cure time as needed to allow surface to dry between multiple coats of KromaKrete™ and DuraGloss™. Keep surface dry for at least 48-72 hours after application to allow material to cure properly. KromaKrete Application in High Humidity back to top Exterior Application in High Humidity: Apply materials as above, increasing cure time as needed to allow surface to dry between multiple applications of KromaKrete™ and DuraGloss EXT™. Keep surface dry for up to 24 hours after application to allow material to cure properly. Interior Application in High Humidity: Apply materials as above, increasing cure time as needed to allow surface to dry between multiple coats of KromaKrete™ and DuraGloss™. Keep surface dry for at least 48-72 hours after application to allow material to cure properly. Product Disclaimers The fast-drying and extremely durable bonding characteristics of DuraGloss™ will permanently bond to a variety of surfaces and is extremely difficult to remove once it has cured. It is strongly recommended that areas which could be affected by splatters, splashes, or overspray be masked and protected prior to treatment. Application and coverage rates are estimated and may vary depending on the porosity of substrate, the desired intensity of color and shine, and environmental conditions present during application. For precise coverage rates, a pre-application field test should be performed. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user. DO NOT ALLOW SEALSOURCE® PRODUCTS TO FREEZE ArmourGuard EPX™ System back to top Industrial Lithium Micro-Coating
Proper surface preparation and product application is essential to product performance. For optimum results, please read instructions in full and contact our Technical Support department at (800) 305-9144 for additional customized instructions prior to application. For enhanced performance, we recommend the application of one of the following DuraGloss™ formulations following the application of AmourGuard EPX™, using the optional instructions provided belowFor optimum results, please read instructions in full prior to application. DuraGloss 50+™ Interior Surfaces/High Gloss/24-hour Cure Time
DuraGloss 30+™ Interior Surfaces/Satin Finish/72-hour Cure Time DuraGloss EXT™ Exterior Surfaces/Matte-Satin Finish/2-hour Cure Time NOTE: When applied to surface, color may vary from SealSource® brochures or website. It is recommended to apply a physical sample prior to treatment. Equipment Needed for ArmourGuard EPX Application back to top
ArmourGuard EPX Surface Preparation back to top
ALLOW NEW CONCRETE TO CURE FOR A MINIMUM OF 14 DAYS PRIOR TO APPLICATION. 1. Patch or fill any cracks or other surface damage. 2. Remove any membrane-forming materials, dirt, debris, wax, paint, curing compounds, coatings, or other surface contaminants that may interfere with penetration or adhesion. 3. Apply a test sample to a small area to assess adhesion. 4. To allow proper penetration create a rough surface profile using shot blast, diamond grinding to a 70 resin grit level, acid etch or similar. (Treatment area may also be prepared using a 1-to-1 mixture of vinegar and water.) Sweep and scrub surface with water, using a neutralizing agent if chemical preparation has been used. 5. Sweep area to be treated and scrub clean with water to remove any remaining contaminants, dirt, and dust caused by grinding. Allow surface to dry completely prior to application. ArmourGuard EPX Product Application back to top Please note that coverage rates may vary depending on surface porosity, extreme temperatures, or humidity. Additional applications may be necessary to achieve desired results. (If applying ArmourGuard EPX™ with DuraGloss™, please see alternate instructions indicated below.) 1. Agitate ArmourGuard EPX with a mechanical mixer to ensure color uniformity. 2. Using a low-pressure, pump-up, airless, backpack, or mechanical sprayer, spray out material at 200 sq/ft per gallon (5 m2 per liter). 3. Allow material to dry for 30 minutes before opening to foot traffic and one hour for forklift traffic. Product Application (ArmourGuard EPX™ with DuraGloss™) Interior Surfaces 1. Agitate ArmourGuard EPX with a mechanical mixer to ensure color uniformity. 2. Using a low-pressure, pump-up, airless, backpack, or mechanical sprayer with an approximate tip size of .15-.17, spray out material at approximately 200 sq/ft per gallon (5 m2 per liter). 3. Allow surface to dry for a minimum of 1 hour or until dry to the touch, then spray on a consistent application of DuraGloss 50+™ or DuraGloss 30+™ at approximately 1,500 sq/ft per gallon (40 m2 per liter). 4. Wet out a 100% polyester microfiber applicator pad with the material to avoid streaking, then spread material evenly over surface to achieve a consistent, wet appearance. (If the material appears to be streaking, spray on additional material. If the material has a blue, milky/cloudy appearance, continue to pull out material until it no longer appears blue.) 5. When surface is dry, burnish with SealSource® diamond-impregnated pads using a high-speed floor burnisher (minimum of 1,500 RPMs). 6. Apply a second application of DuraGloss™ as above and burnish when surface is dry. Keep surface dry for the minimum cure time recommended by manufacturer to allow material to cure properly. For best results, immediately wipe up spills and do not allow puddles or standing water to accumulate on the surface for a minimum of 7 days. Exterior Surfaces 1. Agitate ArmourGuard EPX with a mechanical mixer to ensure color uniformity 2. Using a low-pressure, pump-up, airless, backpack, or mechanical sprayer, spray out material at approximately 200 sq/ft per gallon (5 m2 per liter). 3. Allow surface to dry for a minimum of 2 hours until dry to the touch, then spray on a consistent application of DuraGloss EXT™ at approximately 400 sq/ft per gallon (10 m2 per liter). 4. Wet out a 100% polyester microfiber applicator pad with the material to avoid streaking, then spread material evenly over surface to achieve a consistent, wet appearance. (If the material appears to be streaking, spray on additional material. If the material has a blue, milky/cloudy appearance, continue to pull out material until it no longer appears blue.) 5. When surface is dry, apply a second application of DuraGloss EXT™ as above. 6. Keep surface dry for 1-2 hours following treatment to allow material to cure properly. ArmourGuard EPX Application in High Humidity back to top Apply materials as above, increasing cure time to up to four hours prior applying DuraGloss™. Surface may take up to 14 days to achieve maximum performance under conditions of extreme temperature or humidity. Product Disclaimers ArmourGuard EPX™ will not bridge or fill cracks and will not salvage honeycombed or structurally unsound surfaces. Do not allow ArmourGuard EPX™ to come in contact with any glass, fabric, metal, or surfaces that are not going to be treated with SS ArmourGuard EPX™. Immediately wipe contaminated surfaces with a clean, water-saturated cloth, then wipe dry with a second clean cloth. Do not allow traffic until surface is completely dry. The fast-drying and extremely durable bonding characteristics of AmourGuard EPX™ and DuraGloss™ will permanently bond to a variety of surfaces and is extremely difficult to remove once cured. It is recommended to mask off and protect areas that could be affected by splatters, splashes or overspray. Application and coverage rates are estimated and may vary depending on the porosity of substrate, the desired intensity of color and shine, and environmental conditions present during application. For precise coverage rates, a pre-application field test should be performed. Proper application is the responsibility of the user. It is highly recommended that the installer contact our Technical Support department at (800) 305-9144 for customized instructions prior to application. Proper application is the responsibility of the user. DO NOT ALLOW SEALSOURCE® PRODUCTS TO FREEZE LineStripe™ Product Application back to top Lithium Traffic Marking/Safety Paint
Proper surface preparation and product application is essential to performance. For optimum results, please read the instructions in full prior to application.
Equipment Needed for LineStripe Application back to top Mechanical mixer or paint-mixing tool mounted in a drill motor Manual Application: 3/4" nap roller Spray Application: mechanical sprayer LineStripe Surface Preparation back to top Allow new concrete to cure for a miniumim of 14 days prior to preparation and application of LineStripe™. 1. Thoroughly clean surface to be treated, removing any dirt, grease, oil, rust, salts or any other surface contaminants that interfere with adhesion. (If re-striping, there is no need to remove the underlying stripe prior to application.) 2. Apply a test sample to a small area to assess adhesion. 3. Create an open surface profile for long-term placement, preferably with a 1-to-1 mixture of vinegar and water. Diamond grinding may also be used. 4. Sweep and scrub surface thoroughly with water to remove any remaining material. Surface must be clean, dull, and completely dry prior to application. 5. Mask area surrounding the surface to be treated to protect from overspray. LineStripe Product Application back to top Material may be sprayed or rolled onto surface. Viscosity is similar to most industrial line stripe paints. 1. Mechanically mix material immediately prior to application. (Although LineStripe™ is a one-part material, complete mixing is essential for product performance.) 2. Spray Method: Spray out material at 15-20 mils wet (coverage rate will depend on width of stripe). Manual Method: Apply using roller with a ¾” nap 3. Allow surface to cure 30 minutes prior to pedestrian use and 3 hours prior to vehicle traffic. For additional protection, allow LineStripe™ to dry for 1 hour and then apply a very thin application of DuraGloss 50+™ (for interior surfaces) or DuraGloss EXT™ (for exterior surfaces) to treated surface with a 100% polyester microfiber pad. 4. Keep surface dry for at least 24 hours. Immediately wipe up spills and do not allow puddles or standing water to accumulate on the surface until material has cured properly (minimum of 7 days). LineStripe Application in High Humidity back to top Apply as above, increasing cure times to one hour for initial foot traffic and 3 hours for vehicle traffic. LineStripe™ may take up to 14 days to achieve maximum performance under conditions of extreme temperature or humidity. Product Limitations LineStripe™ will not bridge or fill cracks and will not salvage honeycombed or structurally unsound surfaces. Do not allow LineStripe™ to come in contact with any glass, fabric, metal, or surfaces that are not going to be treated with LineStripe™. Immediately wipe contaminated surfaces with a clean, water-saturated cloth, then wipe dry with a second clean cloth. Do not allow traffic until surface is completely dry. The fast-drying and extremely durable bonding characteristics of LineStripe™ will permanently bond to a variety of surfaces and is extremely difficult to remove once cured. It is recommended to mask off and protect areas that could be affected by splatters, splashes or overspray. DO NOT ALLOW SEALSOURCE® PRODUCTS TO FREEZE |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
